Model No.
LSR1510-45A/B, LSR1510-35A/B
Product Description
The medium voltage resistance LSR is a bi-component platinum catalyzed voltage resistant liquid silicone rubber. The two components of this product, termed A and B, are transparent and gray respectively, and the mixing ratio for A:B should be 1:1. The tracking resistance of this LSR is class 1A3.5 according to IEC60587 standard. Our medium voltage resistance LSR features high extensibility, good proof tracking index, high tear resistance, etc. It supports injection molding and fast vulcanization. This LSR is used to cold shrink cable accessories, medium voltage cable accessories, cable connectors, etc.
Storage
Keep sealed and store in a cool place below 30℃ before usage. It has a shelf life of 12 months.
Usage

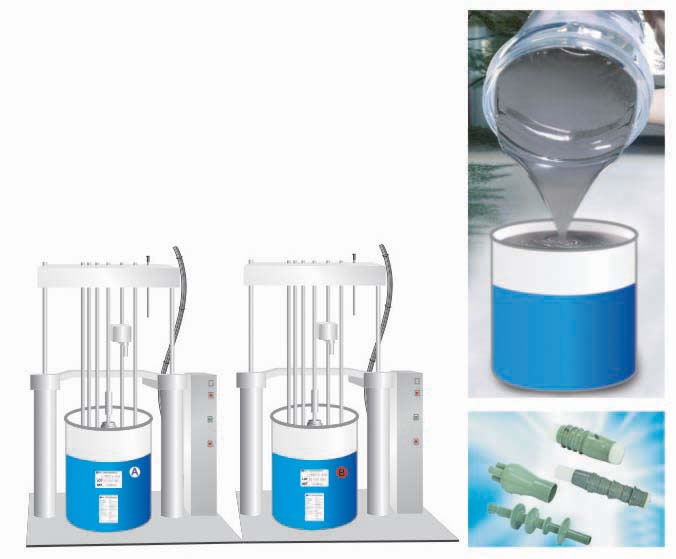

Use a static mixer to mix the two components, A and B, with a ratio of 1:1. Feed the mixture directly into an injection molding machine. The effective operating time of the mixture is seven days in a room temperature of 23℃. Clean up the pipeline if the injection molding machine is not in use for a long period of time.
Packing
Our medium voltage resistance LSR is packed in a 20kg or 200kg barrel.
Typical Specification
| Uncured Properties | Test Method | Property | Unit | LSR 1510-35A/B | LSR 1510-45A/B |
| Color: Transparent for component A, gray for component B | |||||
| Solid Content | % | 100 | 100 | ||
| Viscosity(Y=10.0S-1) | Pa.s | 750 | 550 | ||
| Cured Properties | DIN 53479 | Specific Gravity | 1.13 | 1.13 | |
| DIN 53505 | Hardness | °A | 35 | 35 | |
| DIN 53504 | Tensile Strength | MPa | 9.0 | 8.5 | |
| DIN 53504 | Elongation at Break | % | 800 | 750 | |
| ASTM D 624B | Tear Resistance | KN/m | 30 | 30 | |
| D412 | Tension Set: Keep 200% extension for 48 hrs at 50℃ | % | 3.0 | <3.0 | |
| D412 | Tension Set: Keep 300% extension for 15 hrs at 120℃ | % | <8.0 | <8.0 | |
| GB/T1692-1992 | Volume Resistivity | Ω.cm | 1.9x1014 | 1015 | |
| GB/T1691-198 | Dielectric Constant at 50HZ | 2.8 | 2.8 | ||
| GB/T1691-198 | Dissipation Factor at 50HZ | 0.0016 | 0.0016 | ||
| GB/T6553-2003 | Tracking Resistance | Class | 1A3.5 | 1A4.5 | |
| GB/T1695-2005 | Dielectric Intensity | kV/mm | 26 | 26 | |
Note:
The viscosity is measured by NDJ-79 rotary viscosimeter
Molding condition: High pressure curing for 10 minutes at 140℃
Vulcanization condition: Curing for four hours at 200℃
GB stands for Chinese national standard
The above technical properties are for reference only. For detailed molding conditions, please contact us directly.
SQUARE Silicone Materials is a medium voltage resistance LSR manufacturer and supplier, based in China. As a result of their high quality and low prices, our products are very popular with customers in many countries, such as India, Malaysia, Thailand, Korea, Pakistan, Egypt, Turkey, Nigeria, Poland, Ukraine, the United Kingdom, the United States, Australia, Brazil, Chile, Mexico, Taiwan, and so on.
