Two-Part Solid Silicone Rubber for Insulators

Home » Products » High Voltage Insulator »Two-Part Solid Silicone Rubber for Insulators
Two-Part Solid Silicone Rubber for Insulators

Model No.
SSR1501-35A/B,SSR1501-45A/B,SSR1501-50A/B

Product Description
The SR335 two-part solid silicone rubber is a platinum catalyzed bi-component solid silicone rubber. It is suitable for extrusion or injection molding in cold shrink tubing. Our two-part solid silicone rubber features good aging resistance, high tear resistance, superior dielectric property, high tensile stretch, etc. It is non-reactive, stable and resistant to extreme environments and temperatures from -60℃ to 250℃ while still maintaining its useful properties. Due to these properties, our solid silicone rubber is used to cold shrink cable accessories, lightning arresters, medium to high voltage insulation materials, etc.

Storage
Keep sealed and store in cool, dry and dark place. It has a shelf life of 12 months.

Usage
Use a static mixer to mix the two components, A and B with a ratio of 1:1. Feed the mixture directly into an injection molding machine. Note: the mixture has an effective operating time of 48 hours.

Packing
Our two-part solid silicone rubber is packed in 20kg barrels.

Typical Properties

Property Test method Unit SSR1501-35A/B SSR1501-45A/B SSR1501-50A/B
Appearance Translucent Translucent Translucent
Shore A hardness D2204 °A 35 45 50
Tensile Strength D412 MPa 8.0 9.0 8.0
Elongation at Break D412 % 850 800 800
Tear Strength D624 B kN/m 20 35 40
Tension Set D412 DIE C % 1.8 2.0 2.0
Tension Set D412 DIE C % 6.0 6.0 6.0
Volume Resistivity IEC60093 Ω, cm 1015 1015 1015
Dielectric Strength IEC60243 kV/mm 26.0 26.0 26.0

Note: Molding condition: High pressure curing for 10 minutes at 170℃
GB stands for Chinese national standard
The above technical properties are for reference only. For detailed molding
conditions, please contact us directly.

Model No.
SR6680/SR6681

Product Description

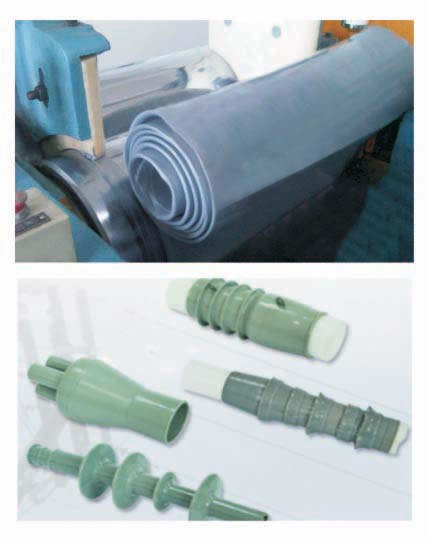

The SR6680 solid silicone rubber is a peroxide vulcanized solid silicone rubber which is particularly suitable for extrusion or compression molding in cold shrink cable accessories. This two-part solid silicone rubber features good aging resistance, high tear resistance, superior dielectric property, high tensile stretch, etc. It is non-reactive, stable and resistant to extreme environments and temperatures form -60℃ to 250℃ while still maintaining its useful properties. Due to these properties, our solid silicone rubber is used to cold shrink cable accessories, lightning arresters, medium to high voltage insulation materials, etc.

Storage
Keep sealed and store in cool, dry and dark place. It has a shelf life of 12 months.

Usage
Evenly mix this silicone rubber with a peroxide catalyst at an appropriate ratio and then feed the mixture directly into the molding machine.

Packing
Our two-part solid silicone rubber is packed in 20kg PE cartons.

Typical Properties

Physical Property Standard Unit SR6680 SR6681
Appearance Pale yellow or grey Transparent or pale yellow
Hardness DIN53 305 ºA 45 45
Tensile Strength DIN53 504 S2 MPa 10 10
Elongation at Break DIN53504 S2 % 850 800
Tear Strength ASTM D624 Die B kN/m 35 35
Permanent Set D412 % <5 <5
Volume Resistivity GB/T1692 Ω.cm 1015 1015
Dielectric Strength GB/T1695–2005 kV/mm 25 25

Note: The above technical properties are for reference only. For detailed molding conditions, please contact us directly.

SQUARE Silicone Materials is a professional two-part solid silicone rubber for insulators manufacturer and supplier, based in China. With high quality raw materials, highly trained technicians, and scientific design, these products are exported to the United Kingdom, the United States, Australia, Brazil, and Thailand, among others. Please contact us for more information about our products!
